Classic 19 Center Console Boat Plans (C19)

[C19]The Classic 19 is a true center console offshore boat with just the right hull shape for fishing or family outings.

(1 customer review)

$95.00$120.00

SKU: C19-plans Category:

Description

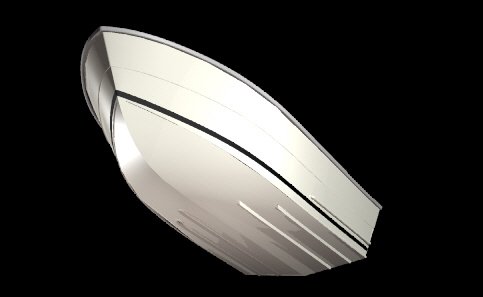

The Classic 19 is a true center console offshore boat with just the right hull shape for fishing or family outings. The proven hull shape with a typical 12 degrees moderate vee is similar to the boats that Jacques Mertens designed for Pursuit like the Denali hull: sufficient deadrise to run smoothly in bad weather but moderate enough to provide good stability at slow speed without the wild roll typical of deeper vee hulls.


Click here to see study plans


Related Kits:

CNC Kit – MarinEpoxy Kit – SilverTip Epoxy Kit

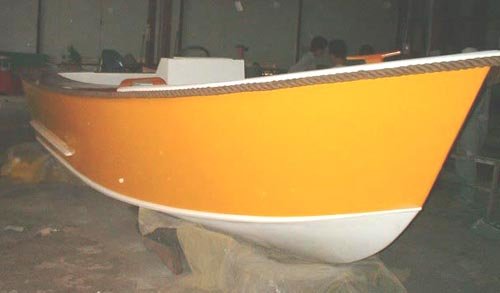

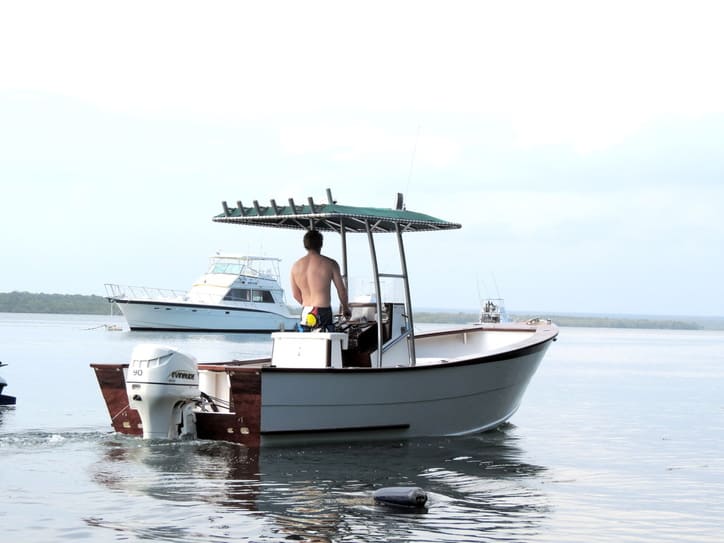

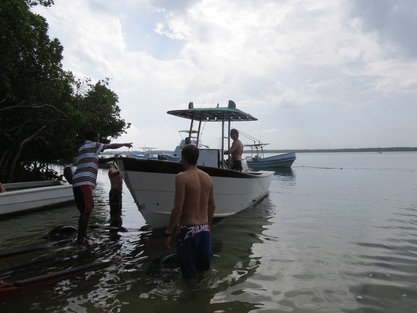

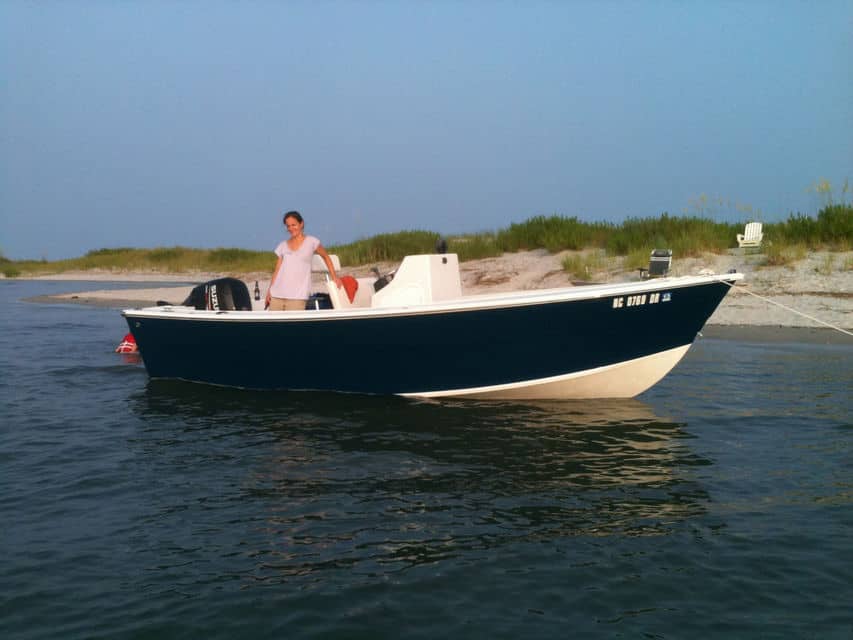

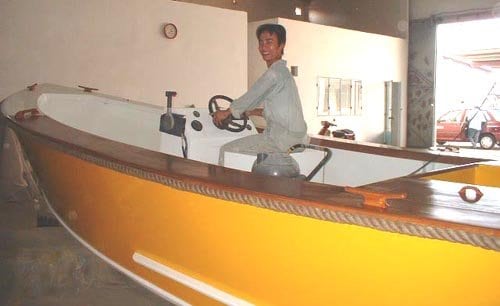

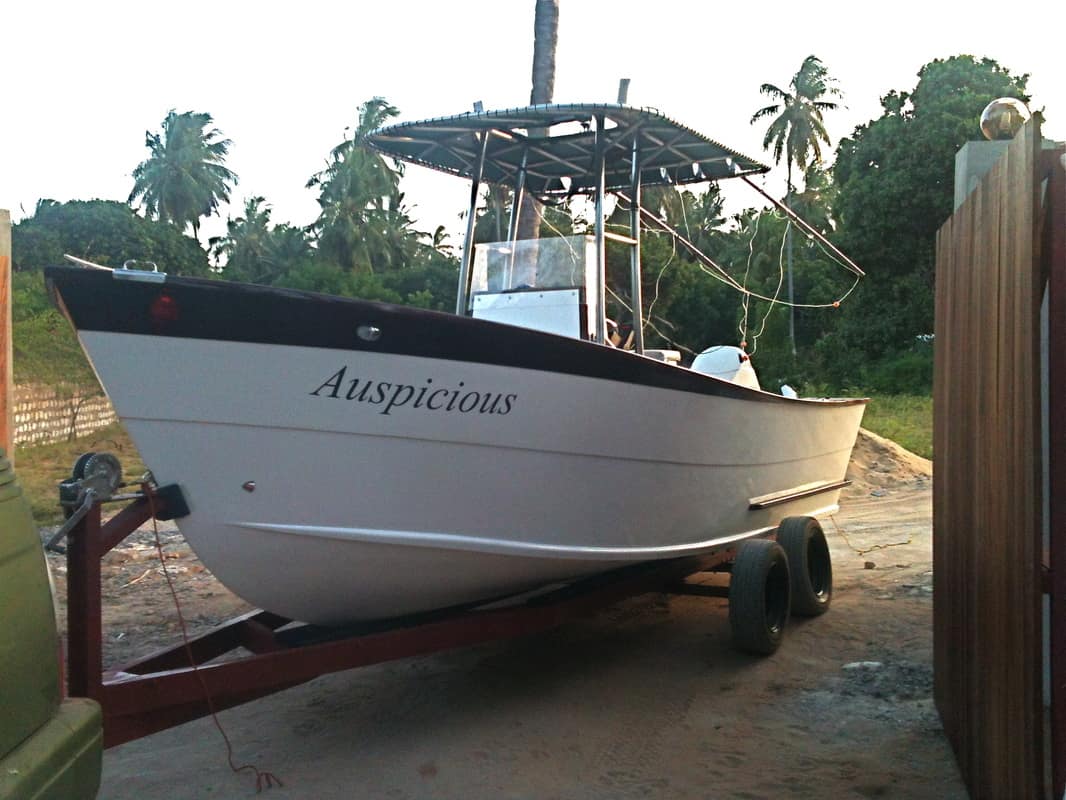

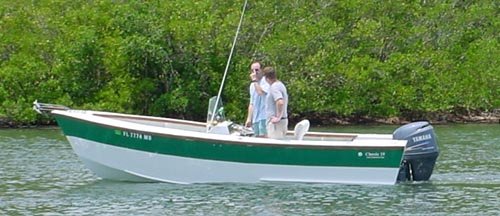

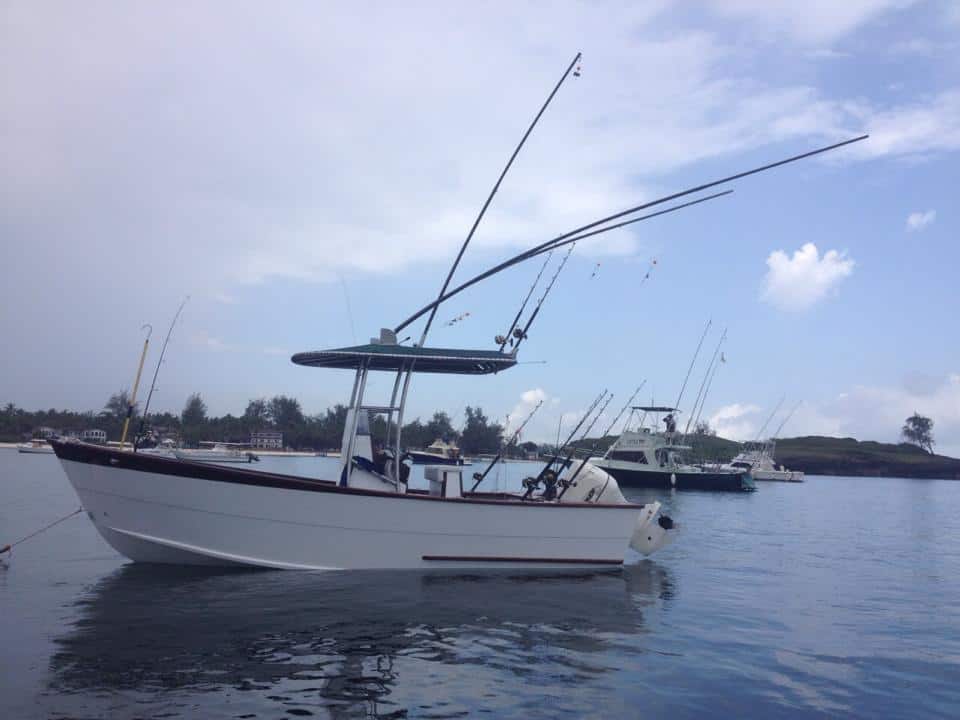

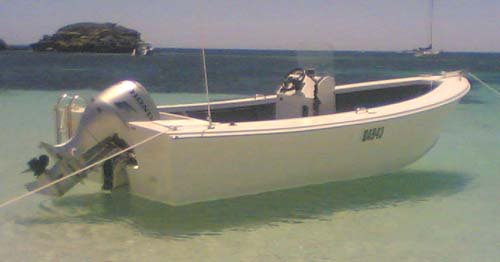

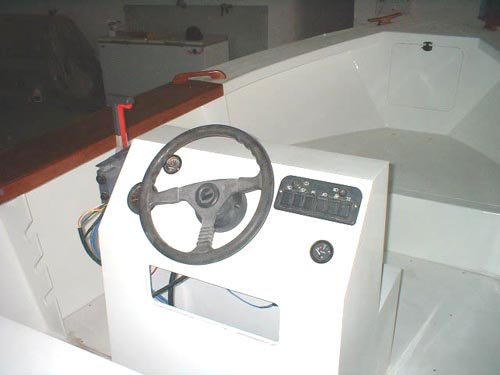

Gallery


Additional information

Weight N/A
Dimensions N/A
Specifications

LOA: 19' 2" 5,85 m Max. Beam: 8' 2,44 m Hull draft at DWL: 8" 20 cm Displacement DWL: 1,900 lbs 760 kg PPI at DWL: 425 lbs 170 kg Hull weight: 1,200 lbs. 480 kg Fuel: 60 gallons 240 liters HP 90 max 150 Material: Stitch & Glue

1 review for Classic 19 Center Console Boat Plans (C19)

  1. Jim Wright

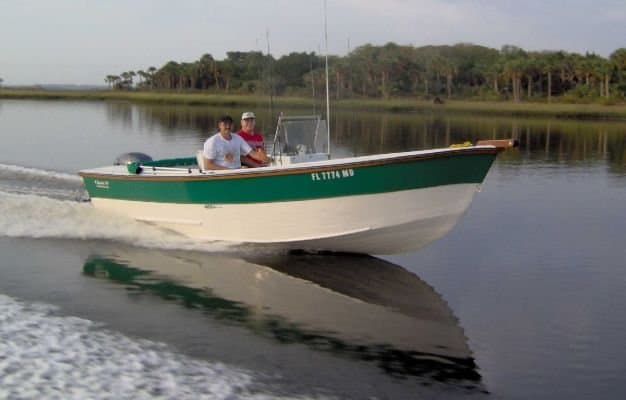

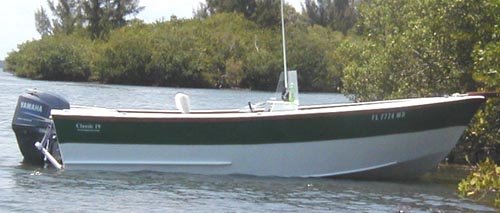

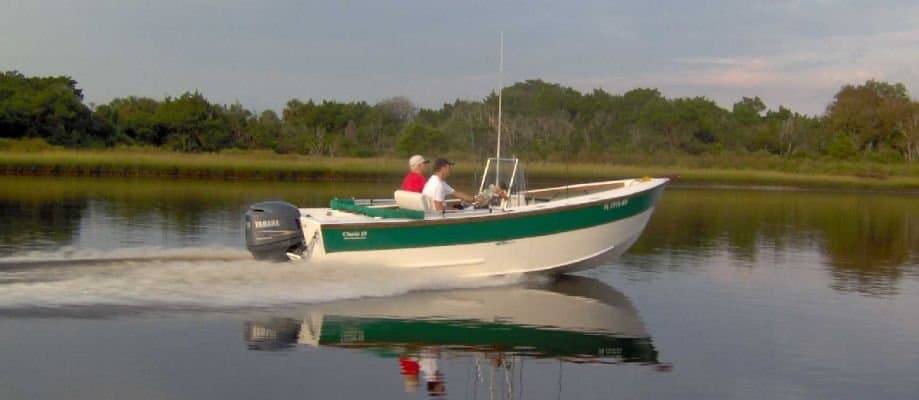

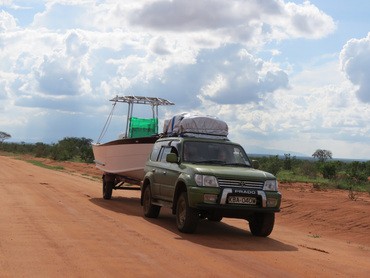

    I waited almost a year in 2001 for these plans to be published. I purchased them the first day they became available. I started building in 2002 and finished hull #1 of the C19 in spring of 2003. The plans were awesome. Easy to use and reference. The boat is no 20 years old and when I did a repaint 4 years ago I discovered the hull was still in great shape. The repaint made it look brand new again. The yamaha 115 4 stroke is perfect and top speed is around 46 mph lightly loaded. I’ve had the boat 60 miles off shore a few times and even brought my first blue marlin to the boat for a good release in April 2006. It is a really light boat so single axle trailer is all you need. I can’t say enough good about these great designs. The tutorials are a great help and really describe all the required skills you need. I have 2 30 gallon fuel tanks installed but that is over kill really. 35 gallons is the most I ever used in a day. C19 is a great compromise boat, small yet very capable.
