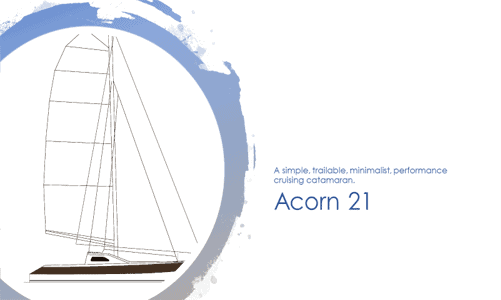

Acorn 21 Boat Plans (AC21)

Acorn, a 21′ (6,4 m) simple, hard chine, plywood epoxy trailerable catamaran with 2 berths.

$240.00

SKU: AC21-plans Category:

Description

The Acorn is a 21ft lightweight plywood minimum fast cruiser that has been kicking around for nearly 20 years but only recently have plans been drawn. Some parts, eg boards, rudders, spars, can come from large beach cats (ie Hobie 18 or larger). The rig shown is the optional racing rig which is only suitable for experienced sailors in lightwind areas.

Designed by Richard Woods.


Click here to see study plans


Gallery


Additional information

Specifications

LOA: 21’ 6.4 m LWL 20’ 10” 6.35 m BOA 12’ 5” 3.8 m Sail Area (racing)(main – jib) 211 – 97 ft2 19.6 – 9 m2 Weight 880 Lb 400kg Displ. 1588 Lb 720kg Draft (board down) 8 (39)” .19 (1) m Material: Plywood, fiberglass, epoxy.
